Wrist Genie e-paper smart watch with multiple time modes.

Design submitted by Justin from the UK.

Justin says: The era of the Smart Watch is upon us. I thought it would a good time to try my hand at designing one. The market is still in its infancy and there is plenty of demand for them. Some try to do far too much, while others, not enough. I believe I have struck a nice balance here.

I will apologize in advance for the torrent of information below but as you can imagine its no easy task trying to explain away this many features with very few words/animations.

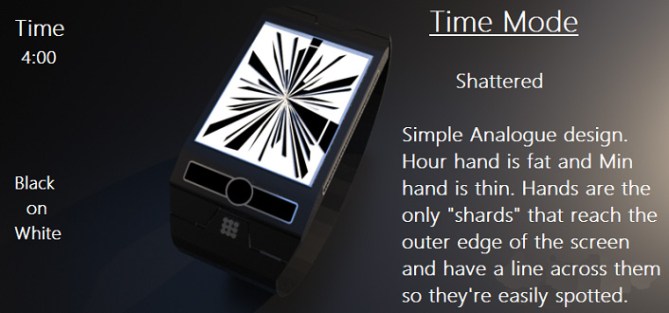

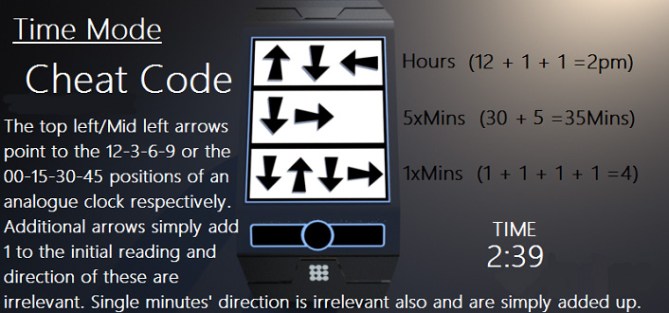

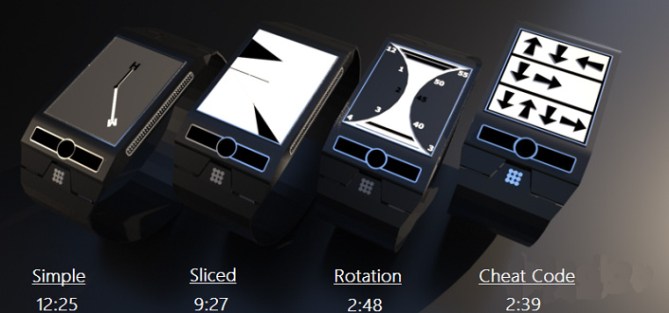

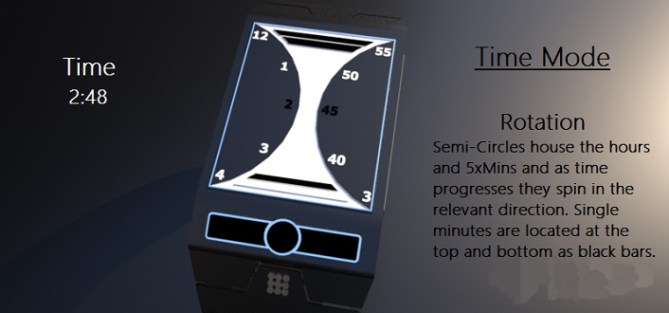

In this Dot Matrix E-Paper based watch I have crammed in 5 different time modes!! Shattered – Simple – Sliced – Rotation & Cheat Code. Each one has a varying degree of difficulty and each one unique. I have provided pictures and each has its own detailed explanation of how to tell the time. Shattered for me would be the most fun as when pressing the “Clock” part of the touch screen it would appear that your finger has broken the watch face.

I would hope everyone would wear this…that’s never going to be the case though as you can’t please everybody, so I would be happy settling for geeks and early adopters of this new technology. Anyone wishing to free themselves from the chains of having their face stuck in their phone 24/7 will no doubt feel some form of freedom with a smartwatch leaving plenty of time to enjoy the finer things in life.

• 5 Watches in 1.

• Bluetooth connectivity.

• Backlight at the flick of the wrist.

• Proximity Alert (Wander off too far from your phone and your watch will alert you!).

• Possibility of future apps being downloaded to your wrist – Ebay, banking info, News updates, weather alerts, travel info etc.

• New watch designs downloadable (for a price of course)…

The list goes on.

All it needs…is a name…
