“Hybrid 3” analogue watch cleverly appears to be digital

Design submitted by Peter from the UK.

Peter says:  This is “Hybrid 3” a redesign of a re-design of “Hybrid” which featured on the blog back in March 2012.

Hybrid 3 02

The original design combined both LCD with a mecahnical analogue movement. The design utilised a metal disc with the LCD hour blocks mounted into it. The disc rotated to highlight the mins. The seconds were shown by LCD segments in a ring around the disc. The metal disc proved to be too expensive and required a heavy duty and most likely expensive movement to power it. Also packaging both technologies into one watch would have been tricky.

Hybrid 3 03

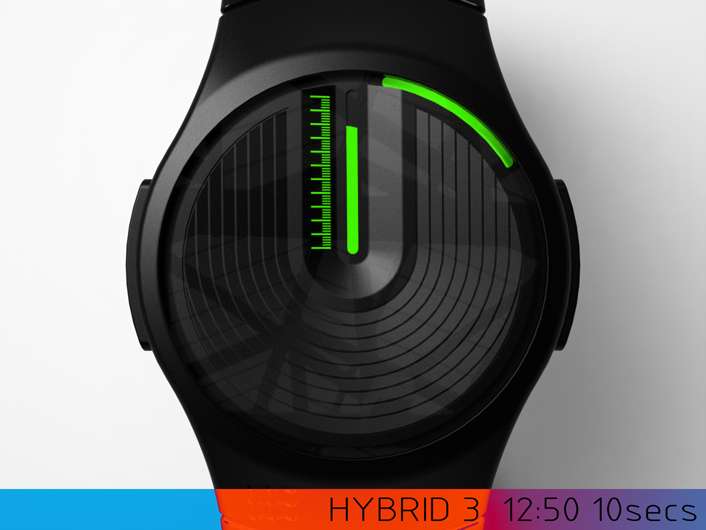

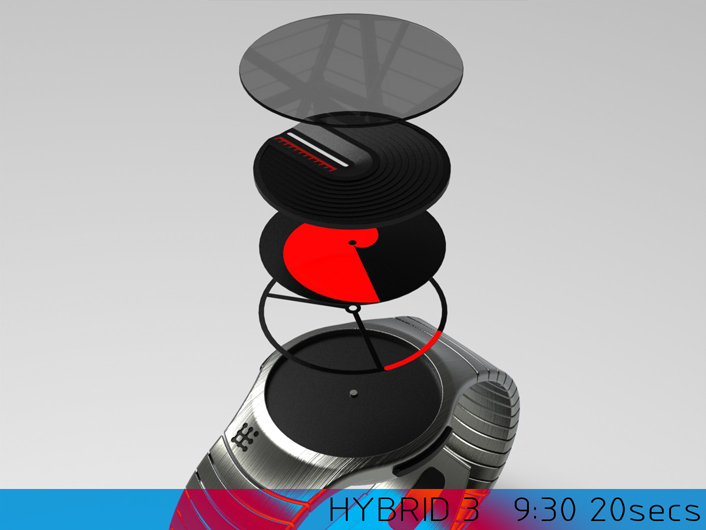

This version does away with the LCD element in favour of full analogue, the metal disc is replaced by a much lighter moulded plastic item (could be flat plastic or laser-cut/laser-etched thin metal) The time has changed subtly too, the top disc now tells the hours and features a narrow window cut into it which displays the minutes. This is done by a spiral shaped disc (similar to the ones used in “Swirl 1 & 2”) beneath. This spiral shape travels up the narrow window to display the minutes (in a similar way to “Swirl”). The seconds are displayed by a partial ring of colour around the outside of the dial. All of which would utilise illuminesent paint for that electronic look. I imagine that the gearing of the minute hand would need to different to a standard analogue movement as the minutes chase the hour disc around the dial. Hopefully this would be an easy mod to a standard movement x^^x

Hybrid 3 04

Like the original design the simple visual language is traditional in its form and proportions so shouldn’t scare off traditionists. The time telling is very simple and intuative but clever in its methodology.

This design will hopefully stand out due to its simple time reading method created in an unuseal manner. The form also lends itself to pre-existing watch housings, again adding to the viability.

Hybrid 3 05 Hybrid 3 06 Hybrid 3 07 Hybrid 3 08 Hybrid 3 09

28 thoughts on ““Hybrid 3” analogue watch cleverly appears to be digital

  1. Welcome back TF, and Pete as well of course! =)

    Looks like a return to form, this. Cleverly designed and with sober styling; what’s not to like? One small gripe I might have is that the seconds chasing the hours could make them (the seconds) a bit difficult to read at a glance. I don’t know how many people need to know the time down to the second, and I’m well aware that I’m throwing stones in a glass house since a few of my own submissions have had similar quirks.

    Now I’ll just need to get my half-finished concepts done so I can submit something as well…=)

    Liked by 1 person

    • The hope is that the movement could be tweaked so that the minite disc moves 65incruments per hour which would allow for the changing position of the hour disc. I’m not sure how that would effect the seconds tho. Fingers crossed such technicalities can be sorted. Cheers Anders! 🙂


  2. Welcome back Toky and nice submission Pete. Very clever use of discs and markings etc. looks like a lot of thought has gone into this and the whole, overall package looks great.
    The styling is my kind of sci-fi too. This is one you wouldn’t be ashamed to show off!!

    It certainly does feel good to back!!

    Liked by 1 person

  3. Hi Pete, of return in form. I always appreciate your designs and it is not this year 2015, which I will change opinion.
    Good luck my friend.

    Liked by 1 person

  4. Really cool design! I’m very intrigued!…

    …mostly by the math/design required. The main concern I see in making this real is that you would need a custom analog movement–the minute “hand” (minute disk) will need to rotate at 1+1/12 rotations per hour instead of the usual 1 rotation per hour.

    But I would love, love, love to see this real. Just pointing out one challenge I see.


    Liked by 1 person

    • Hi Injust29, yeah you are totally correct about the movement. I don’t know how easy it would be to make the minute hand travel more increments per hour than a standard movement. If you were making a bespoke movement I imagine it’s simply a gearing ratio, but to modify an existing movement maybe tricky. I’m hoping there is a way to add secondary gearing to a standard movement to achieve the result. The effect could be achieved digitally but it would be nice if it was analog. Cheers for the support and interest! 🙂


  5. Crazy Pete’s 2015 models are in, and they are going fast! So glad Toky is back to showcase your stuff, Pete. As with your original concept, I Like this!

    Liked by 1 person

  6. I like the scaled minutes. Inverting the hour & 5 minutes is nice & give a better “animation”.
    I like that the seconds are used. It give another nice animation. The segment wideness can be anything too.

    Liked by 1 person

  7. Great to have the chance to review wonderful designs again, and a great start!
    As always another professional entry from Pete.
    I love it, but suspect my poor eyesight may not be able to read the individual minutes. Not a problem – it fits nicely into my watch category for ones that are too hard for accurate reading: it’s a weekend watch for me, and I’d love to have one!

    Liked by 1 person

    • I’m sure the watch could be fitted with a magnifying lens for clearer display, I’d be happy if it was enjoyed as a weekend watch or even as jewellery, so cheers very much! 🙂


  8. Stylish, minimal, cool. Luv this Pete!! Very good flagship for the restart of the blog! Each 10 minutes could use a thicker indicator line or a number next to them to visually help counting.

    ⭐ ⭐ ⭐ ⭐ ⭐ Oops, I mean, I like it 🙂

    Liked by 2 people

    • The stars are hard to forget but hopefully the new likey system will be less corruptable.
      Im glad you likey sir, yeah there a few tweaks that could be made to aid clarity without losing the feel. Cheers again! 🙂


  9. This is an excellent Evolution of Hybrid Pete. Transforming it in to a mechanical movement & plus luminous element s make easy tread Day & night. Surely this will make it more likely to be constructed in reality. Andrew Joy

    Liked by 1 person

    • Cheers for the great comment Andrew! I think the technical sides would make this a tricky watch for TF to make but I cross my fingers that they would want to try. That said it is possible to get the same look in a digital tech I’m sure. Cheers 🙂


  10. This would look great in either digital or analogue forms, though I agree the analogue would be that much more special. I really like how the pattern on the face is repeated through the band and vice versa. Im usually not too big on analogue watches but this fantastic, No question I’d add this to my collection.

    Liked by 1 person

  11. First, thank you very much Toky for open the Blog early 2015, for me is great news.
    Furthermore congratulate the master Pete, for its clever design, though (I do not know why), reminds me some of the designs of another (for me), master Laszlo.
    As always, dear master the best of luck 🙂


    • I had to take a look through Laszlo’s rather extensive back-catalogue to see which design this reminds you of. I can find one specifically so I presume me it has a similar look or feel. Either way I can only take the comparison as a compliment! Cheers for the feedback Jose! 🙂
