Turning Wheel: A digital take on a 70’s classic.

Design submitted by Matt from Canada.

Matt says: One day I saw a Tian Harlan’s Chromachron (which date from early 1970’s). The dial is divided in 12 colors which are almost blocked by a smaller disk with a 1/12 portion cut out. The disk rotates and shows an approximated time because the bezel has no markers.

I made a lot of modifications:

– I’ve blocked the cut out piece at 12 o’clock and gave it a shorter rectangle shape.

– I’ve chosen to use a LCD screen instead of a turning wheel.

– I’ve added the missing minute and second, while using the outer ring for the hour.

– I’ve added another cut out for the month and date.

– The case is in polished metal and have 13 cut-out holes filled with a plastic “crystal”, which is tinted or clear.

To tell the time, you simply have to use the column at 12 o’clock. The number at the top is the hour. The number in the middle is the minute. The number at the bottom is the second.

There’s a date window between the 8 and 4 o’clock: Month at the left and date at the right.

I made 6 type of display:

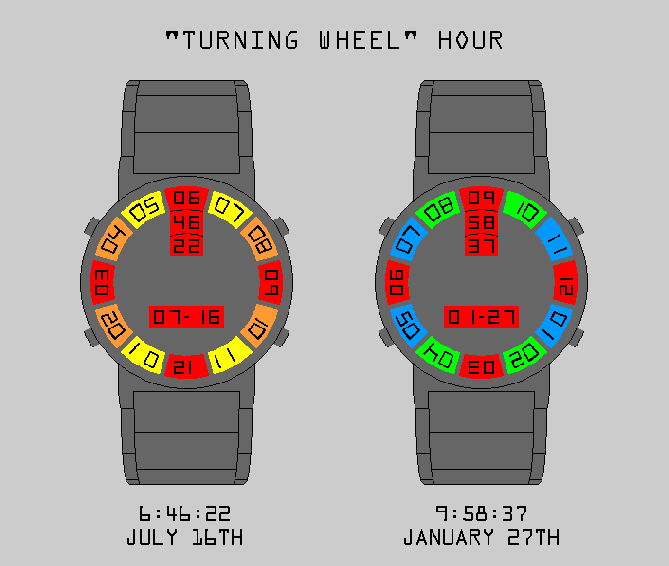

– “Retrograde turning wheel” under a 3 colors tinted crystal.

– “Retrograde turning wheel” under a 12 colors tinted crystal.

– “Retrograde turning wheel” under a clear crystal.

– Note: the hour numbers can go clockwise or counter clockwise.

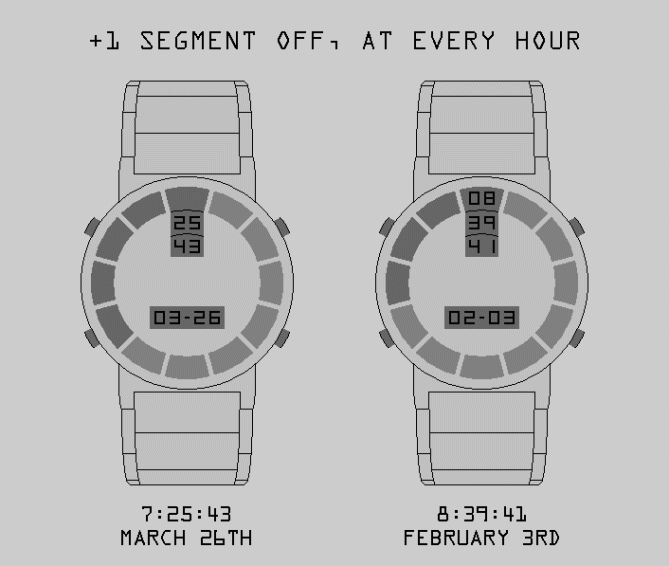

– Multiple segments off, with or without the hour digits.

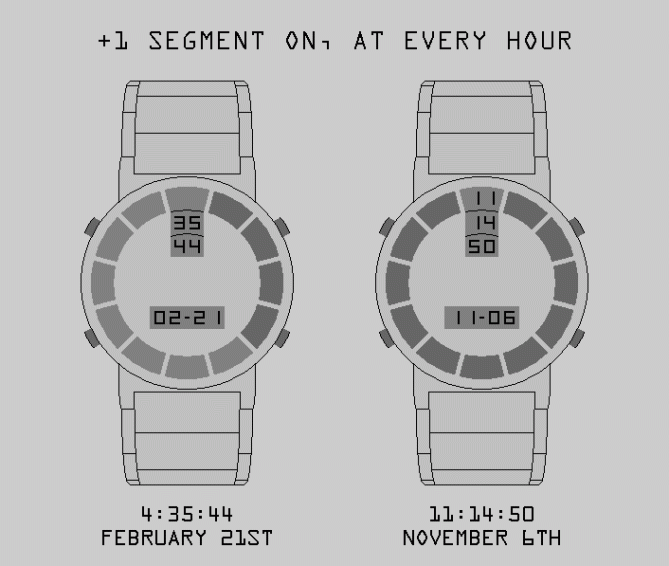

– Multiple segments on, with or without the hour digits.

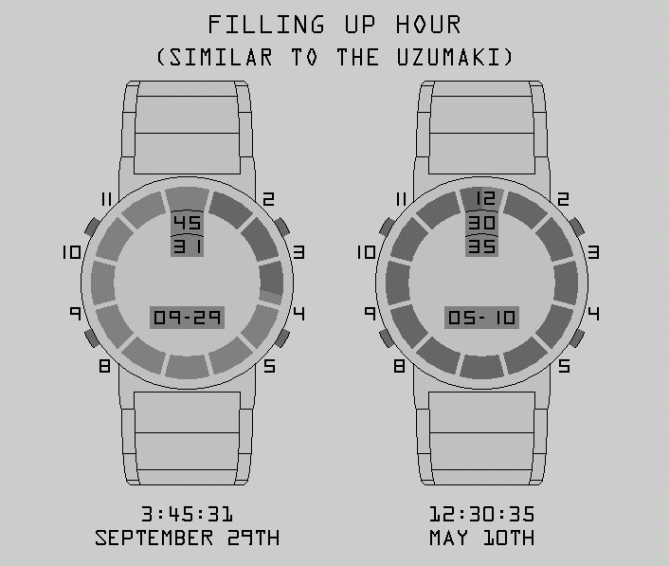

– “Filling-up” hour, comparable to the “Uzumaki”, with or without the hour digits.

People who like retrograde movement and turning wheel are the target market. It can also be good for people who like the 12 colors system but find it too hard to remember which color equal which hour.

Using a covered LCD screen to imitate a turning wheel and having the time in a column at the 12 o’clock position make it stand out.
