Cage LED watch serves time behind bars

Design submitted by Anders from Sweden.

Anders says: Sketching display layouts, I hit upon the idea of dividing an LED display by running wires above it. After refining the idea I had this; Cage. The display comprises 5 rows of 9 LED segments, telling time in the good old 12-5-9 format.

The hour markers are arranged around the edge of the display, in nearly the standard positions, aiding reading. The 9-segment rows indicates minutes, with the 10’s marked by the last LED, also aiding reading. The center segment indicates am/pm. LEDs show hours and minutes simultaneously by contrasting colour or intensity.

I wanted to keep it clean, to avoid obscuring the display’s simplicity. To this end buttons should be hidden, and the buckle is a simple z-link that echoes the face and strap. The strap could  be metal, for those who prefer that option. Colour and material options are nearly endless.

I imagine this should have fairly wide appeal, due to its understated but clear styling, the deceptively cryptic display and the unisex possibilities. It could for example easily be made in ‘his’ and ‘hers’ variants by varying the width of the case and the bars across the face.

19 thoughts on “Cage LED watch serves time behind bars

  1. Thanks to TF for putting this out here! Also, kudos for ‘time behind bars’, I wish I’d thought of that…=)


  2. Looks really great Anders! Has a classy look which would look good casual or formal. The time reading is nice and easy too! I love the style of your images, looks almost real but still looks dynamic, 5/Y and thumbs up!

    Ps I hope the score sorts itself out, was 2.5 when I voted. I appreciate its early days and not many votes yet at least one but person had to give it one star to make it that low which quite frankly is BS!

    Voting aside, best of luck! 😀


    • Thanks Pete, for the vote and support. I’m actually really pleased with how it came out…=)
      Glad you like the pics, too. Maybe those years at university weren’t wasted after all! =)

      Yeah, it was 2.1 this morning when I saw it was up… Anyway, we’ll see how it pans out. I trust TF will judge wisely. It’s a bit disheartening though, I was hoping for a better start.


  3. Hi, Anders! It’s nice to see the familiar LED bars represent locations of numbers on a clock instead of the number of hours. Cooincidence that you rendered this with Easter colors? I think it’s a good combination, and less common. I too think you’re getting the shaft with votes here. I’ll boost you up.


    • Hi Xian, thanks for the support!

      As it’s laid out, the LEDs represent both number and position. Belt and bracers, see? =)

      Hm, yes, the colours are coincidence. Or maybe subliminal…=) I was trying for something a bit fresher than RGB, and the colours are easily changed anyway, if the concept gets anywhere.

      Yes, looking at some of the recent submissions, this score seems peculiarly low. And there are fewer comments than I’d anticipated. But maybe I’m biased. It’s a bit of a bummer anyway, I was hoping I’d got something suited to the audience. More than I tend to, anyway…=)
      Fingers crossed it’ll even out in the end.


      • There tends to be more activity over the weekend, I think… not something I can do anything about anyways, so I won’t lose any sleep over it. =)


  4. really cool concept here, nice job Anders this is definitely a 5 star and big yes worthy concept 🙂


  5. Hey, Anders. I love your images – really nice – and I especially like how cool the clasp looks, and how the strap flows into it. Very sleek.
    I’m not sure I have a full understanding of the time-telling. But generally, I prefer one color of LED rather than multi. Maybe it can me made less complicated using the same layout.

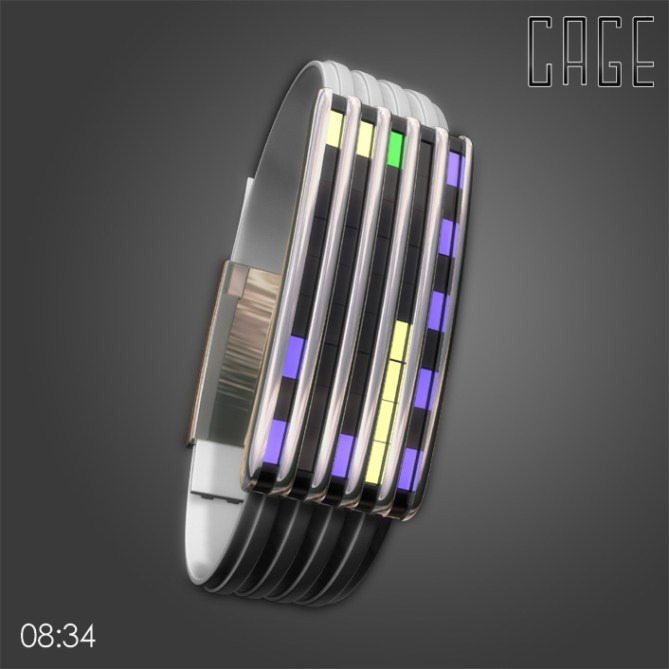

    I get the one that says 16:17, but not the 23:59, and I’m not sure about the 08:34.
