Design submitted by Matt from Canada.
Matt says: This is a revamp of “AD 1224”, a previous submission. It’s an e-paper/lcd combined with analog watch. I wanted to make an analog-digital watch. I choose digital hour and analog minute and second.
I’ve changed the hours display and choose to go with 13 segments for the hours. There’s an array of twelve 1-hour lights surrounding a disk, close to the middle.

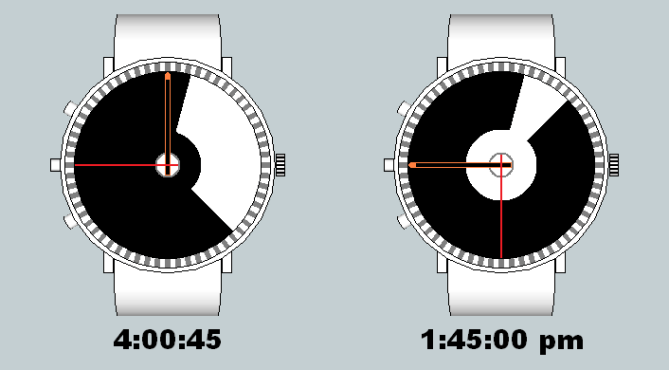

I choose a “sliced pie” shape to get a round display. For the minute I’ve used a thick black hand and for the second I’ve used a thin red hand, just like a conventional analog watch. For the hour, there are some segments of the digital display that lights up.
The display is standard : it start at 1 o’clock and go clockwise. The disk is used as a pm indicator.

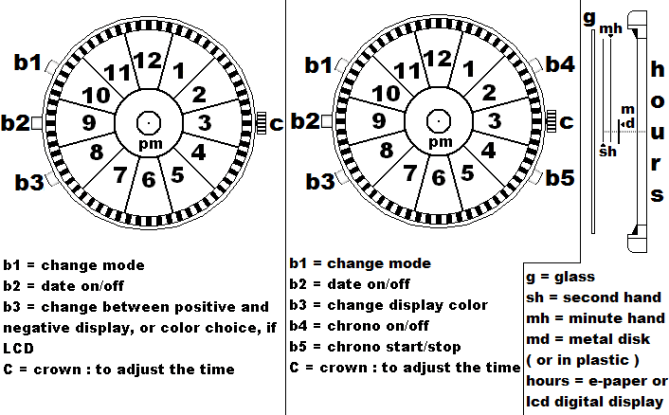

The version without chrono has now 3 buttons, all placed on the left. And I’ve changed the commands order. ( you can check the diagram picture )

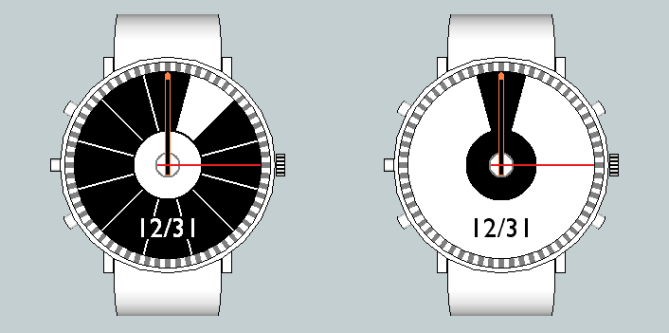

The user can choose between 4 displays modes and positive or negative display for the e-paper version, or between many colors if it was an lcd display, and could have the date displayed, at 6 o’clock. If it was made with lcd, there could be a chronometer added, at the same location. It would replace the date display, if that option was on.
This one will appeal to people who are looking for a distinctive analog watch.
The user can choose between several choices of display, depending on his taste or cloth.
