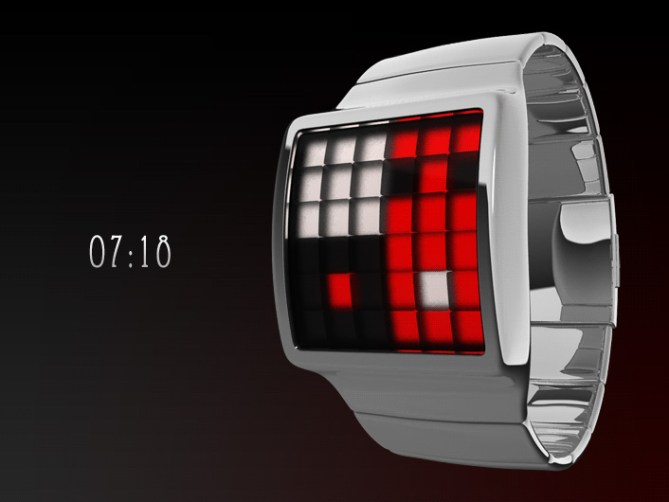

3×3 LED Watch Design

Design submitted by Sam from Germany.

The inspiration from this watch comes from dice and dominos.  Sam likes the graphical display of four 3×3 LED groups.

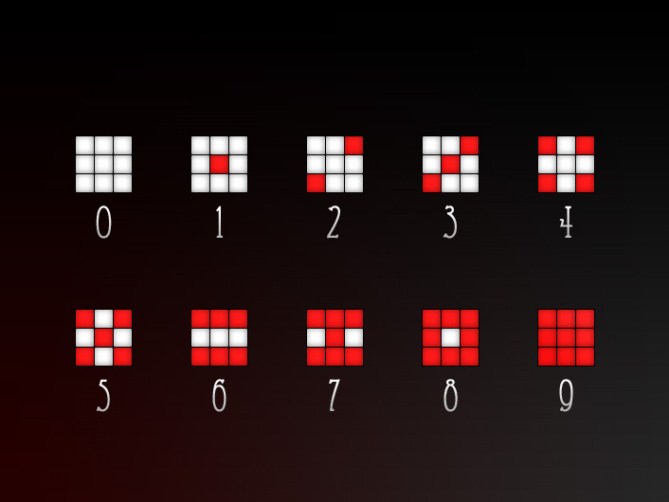

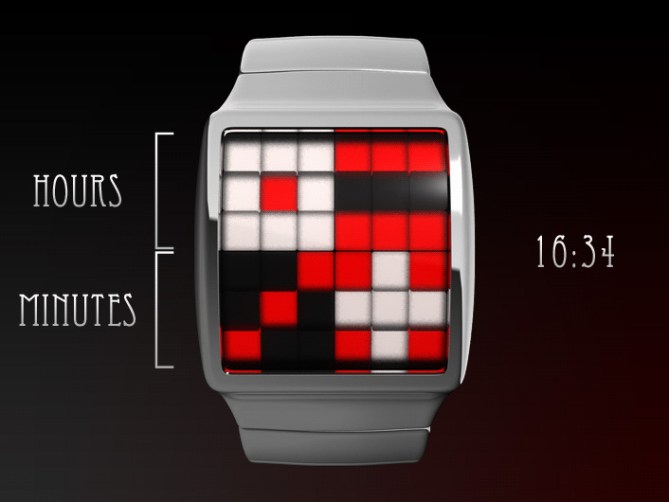

There are four fields of 3×3 LEDs.  The upper two fields are the two digits of hours, lower two fields are the two digits of minutes.  The empty fields are black or white – easy to distinguish.  The numbers are red.  Numbers 1-6 are like on dice and domino.  Zero is empty, 7 is 6 plus a center LED, 8 is a remarkable LED ring and 9 is when all LEDs are lit up.

This watch design is playful because of the inspiration, but it also rational in style.
